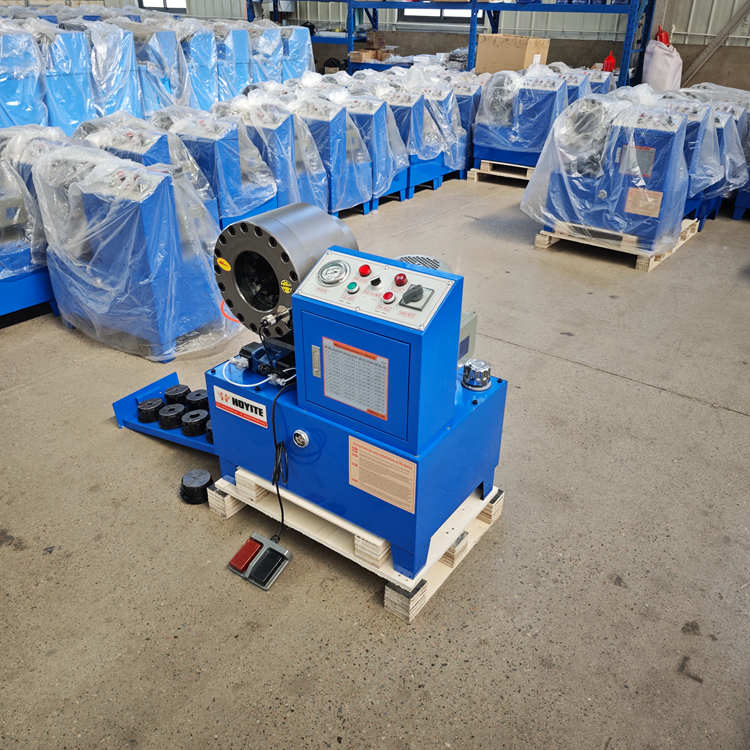

HYT-68 1/4"-2" rubber hose crimping machine for the workshop - Compact, mobile and powerful.
This hose crimping machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
Hose capacity(max. inner diameter): 1/4" - 2" (4 wire)
Technical Parameter:
Model: HYT-68
Crimp force: 500T
Hose capacity: 1/4" - 2" (4 wire)
Free Die sets： 1/4″ – 2″, 10sets
Max. Crimp range: 87mm
Opening: +30mm
Opening without dies: 114m
Close Speed (mm/sec.): 6s
Crimp Speed (mm/sec.): 2.3
Open Speed (mm/sec.): 8.2s
Voltage: 220V/380V
Power: 3KW/4KW
Drive: Electric
Machine (mm): 730*480*740mm
Weight: 250kg
Standard dies:
| Master Dia. | 15/16 | 19 | 23 | 26 | 31 | 36 | 41 | 47 | 55 | 63 |
| crimp range(mm) | 15-19 | 19-23 | 23-26 | 26-31 | 31-36 | 36-41 | 41-47 | 47-55 | 55-60 | 60-63 |
| Lenght (mm) | 60 | 60 | 60 | 60 | 70 | 70 | 70 | 70 | 80 | 80 |
Machine Head
Using forge steel machine head, this kind of steel is more durabler than general steel.
10sets free dies to meet crimping hydraulic hose from 1/4"-2" 4sp 4sh hose .
Digital operation panel, high crimp accuracy.
Equipped with a foot pedal, very convenient for free hand operate.
Visual pressure gauge
HYT-68 hydraulic hose crimping machine is 500T, with an opening diameter of 114mm, a crimp range of 10-87mm and 10 sets of standard dies. As the unrivaled classic in the 2“ field, with its narrow, innovative construction, high level of user friendliness, versatility and long service life, the machine sets the unbeatable standard for quality and cost effectiveness. Best choice for 2inch hose
Addition information
Paymets Terms: T/T ( Bank transfer ), Western Union, Paypal , Credit Card, Online pay etc.

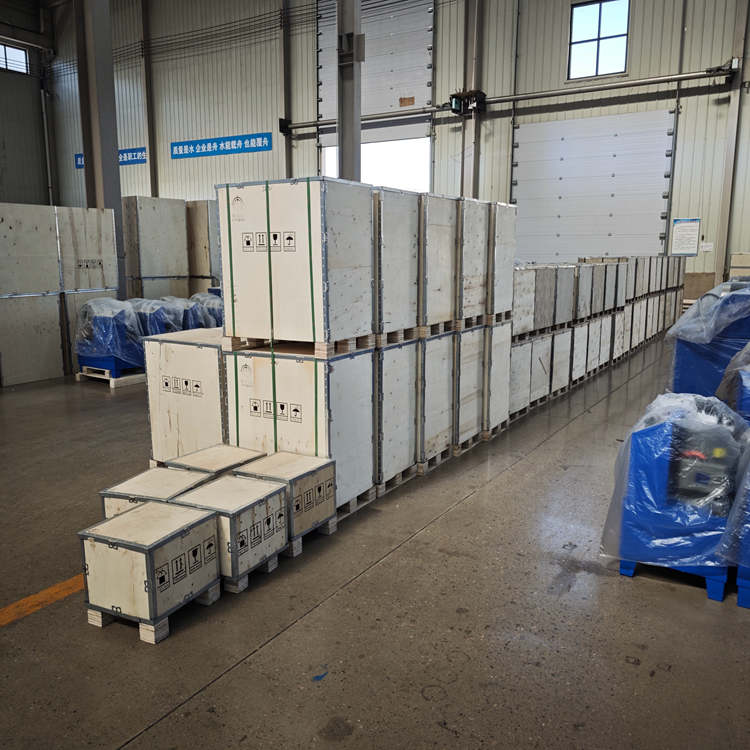

Delivery method: wooden case package ; By sea to any port .
Production Capacity: 200 sets per month
Delivery Time: 3~7 days
