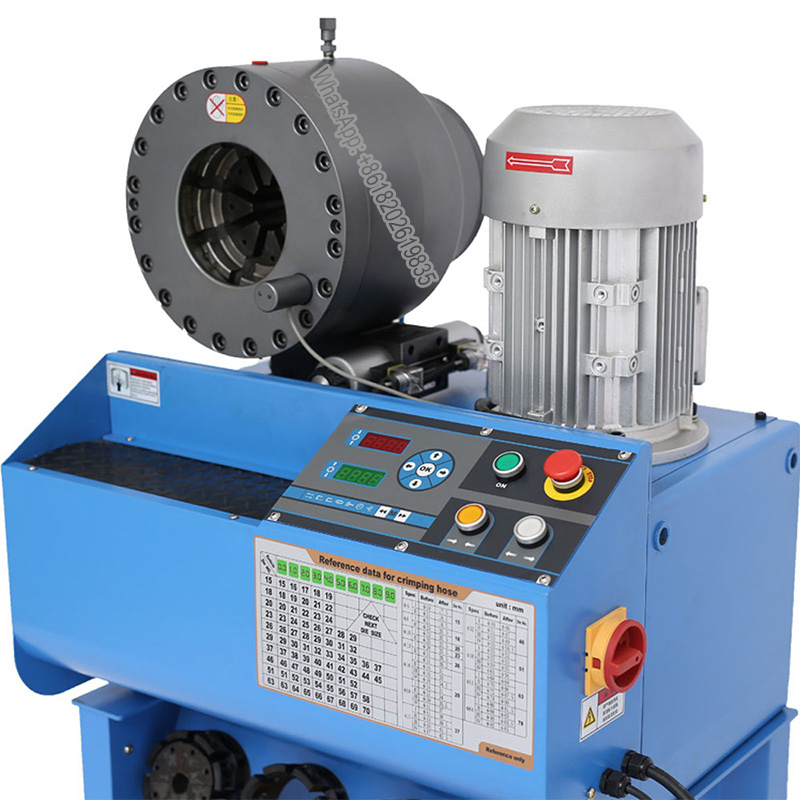

HYT-H91 button type 6SP hydraulic crimper machine

HYT-H91 button type 6SP hydraulic crimper machine

The feature of HYT-H91 hydraulic crimper machine

•  Improved computer system, have more perfect function.
• Suitable for quick change tool.
• Added die base resin gasket to protect the machine from debris dropping.
• The die sets shelf can be taken apart.

Technical data Of HYT-H91 hydraulic crimper machine:

1.The machine head process by CNC machine,roundness and taper is within 0.1mm.The technical of machine head is forging or casting. Casting is cheap but has small hole on machine head. The piston will divide from casting machine head.

2.The machine die base and dies adopt special die steel and process by advanced craft, the hardness is above 55 HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, 4SP even 6SP.

3.Aluminum shell copper wire high efficient motor. Apply deepening heat-sink, it has the advantage of

good heat dissipation, long service life, etc.

4.Machine Pump-Variable Displacement Piston Pump -High power, low noise.

Applications of HYT-H91 hydraulic crimper machine :

1. Suitable for high precision pressing of low and high pressure hose diameter ,starting from 1/4" to 2" internal hose pipe.

2. Used rubber hose to transmit hydraulic pressure as there working power.

3.  Used in Building Construction, Petroleum Industry, Chemical Industry, Car and Motor Industry
